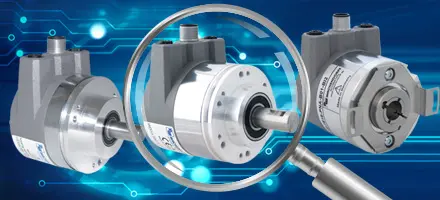

![Direttamente ai prodotti Produkte Drehgeber absolut](/fileadmin/pim/WA/images/kacheln/Produkte-Drehgeber-absolut.webp)
![Tecnologia QuattroMag (monogiro) QuattroMag-Technologie](/fileadmin/pim/WA/images/kacheln/QuattroMag-Technologie.webp)
![tecnologia EnDra (multigiro) EnDra multi-turn technology](/fileadmin/pim/WA/images/kacheln/EnDra-Technology-en.webp)

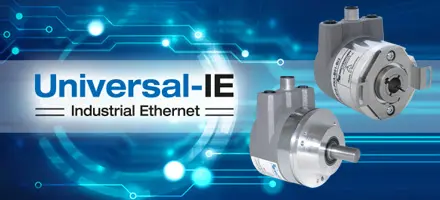

![Encoder Universal Industrial Ethernet Encoder Universal Industrial Ethernet](/fileadmin/pim/WA/images/kacheln/Universal-IE.webp)
![Branchenlösungen Branchenlösungen](/fileadmin/pim/WA/images/kacheln/Branchen.webp)

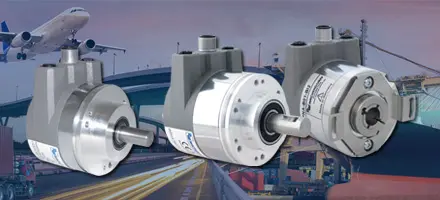

![Note applicative Anwendungsberichte absolute Drehgeber](/fileadmin/pim/WA/images/kacheln/Anwendungsberichte-absolut.webp)
![Download Download](/fileadmin/pim/WA/images/kacheln/download.webp)

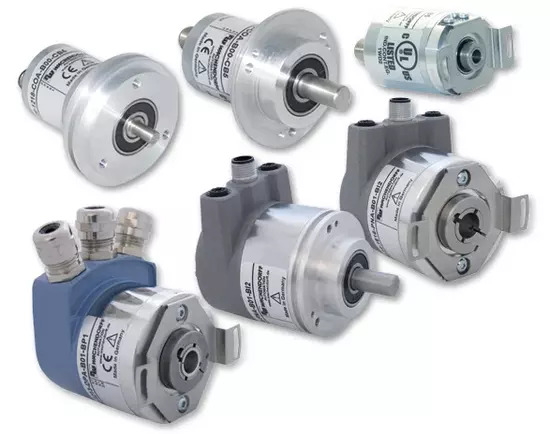

![Absolute Drehgeber Gruppe - absolute encoders group Absolute Drehgeber Gruppe - absolute encoders group](/fileadmin/_processed_/8/5/csm_Gruppe_WDGA_fea18e6266.webp)
WDGA absolute encoder
Robust and durable, state-of-the-art technologies
We place the greatest valueon robustness, longevity and the use of state-of-the-art technologies. These are the parameters that distinguish our developments, as with the WDGA series absolute encoders.
As far as Wachendorff is concerned, only a magnetic solution is good enough to meet these fundamental requirements, both to determine the number of steps (single-turn) and for the revolution counter (multi-turn).
The WDGA series magnetic encoders are considerably less sensitive to vibrations which constantly occur in machines and systems than in the case with optical absolute encoders with a drive unit.
Despite their compact design, the WDGA encoders outperform optical systems with drive technology by a high factor.
![EnDra and QuattroMag technology EnDra and QuattroMag technology](/fileadmin/pim/WA/images/imageseiten/EnDra-QuattroMag-en.webp)
High-precision and highly dynamic
Wachendorff’s patented technologies, QuattroMag® for the single-turn range and EnDra® for the multi-turn range, deliver several million revolutions without overflow, with a maximum single-turn resolution of up to 16 bits and a measurement accuracy of +/- 0.09°, coupled with an excellent dynamic range of 50 µsec.
Thanks to their new high-precision and highly-dynamic technologies, these very robust absolute encoders with magnetic scanning allow for use in areas where the only option before were absolute encoders using the optical principle.
![the most compact absolute encoder with connection housing the most compact absolute encoder with connection housing](/fileadmin/pim/WA/images/imageseiten/WDGA58F.webp)
World record holder:
the most compact encoder with connection housing
We have achieved the world’s most compact axial and radial design with the WDGA 58F design. This gives valuable savings in installation space. The extremely high bearing loads guarantee a long service life and high stability.
In addition to its outstanding mechanical properties, we use the latest electronic components and – it goes without saying – the latest communication and encoder profiles
