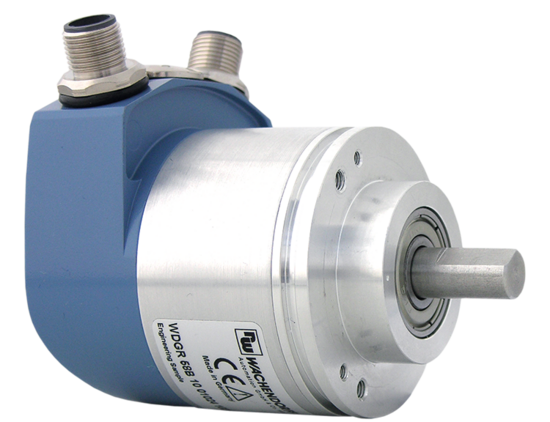

Encoder redundant WDGR 58B
incremental magnetic - incremental optical
Clamping flange: Ø 58 mm

Shaft: Ø 10 mm
Protection housing to IP65, IP67, shaft sealed to IP65
Resolution: magnetic up to 1024 ppr, optical up to 5000 ppr
Signal shape: magnetic square-wave, optical square-wave or sine/cosine

 General technical data incr. encoders
 Datasheet
 Contact local distributors
  • Redundant: two independent encoders in one
  • Diversity: two measuring principles (optical / magnetic)
  • Compact design with bus cover
  • Optical up to 5000 ppr - magnetic up to 1024 ppr
  • Highest bearing loads up to 220 N radial, 120 N axial

Product details

Flange: clamping flange

Flange material: aluminium

Housing cap: steel case chrome-plated, magnetic shielding

Connection cover: zinc-plated

Housing: Ø 58 mm

Shaft(s)
Shaft material:
stainless steel
Starting torque: approx. 1 Ncm at ambient temperature

Shaft: Ø 10 mm
Shaft length L: 20 mm
Max. Permissible shaft loading radial 220 N
Max. Permissible shaft loading axial 120 N

Bearings
Bearings type: 2 precision ball bearings
Nominale service life:
1 x 10'9 revs. at 100 % rated shaft load
1 x 10'10 revs. at 40 % rated shaft load
1 x 10'11 revs. at 20 % rated shaft load
Max. operating speed:  8000 rpm

General Data
Weight:
approx. 440.5 g
Connections: connector outlet
Protection rating (EN 60529): Housing: IP65, IP67, shaft sealed: IP65

Operating temperature: Connector: -40 °C up to +85 °C, 1 Vpp: -10 °C up to +70 °C
Storage temperature: Connector: -30 °C up to +85 °C

Resolution: Max. pulses per revolution up to 5000 PPR



Electrical Data

Power supply/Current consumption
4.75 VDC up to 5.5 VDC: typ. 100 mA
5 VDC up to 30 VDC: typ. 70 mA
10 VDC up to 30 VDC: typ. 100 mA

Output circuit
TTL
TTL, RS422 compatible, inv. HTL
HTL, inv.
1 Vpp sin/cos

Pulse frequency:
up to 5000 ppr: max. 200 kHz
1 Vpp sin/cos: max. 100 kHz

Channels: ABN and inverted signals

Load:
max. 40 mA / channel
@ 1 Vpp sin/cos: min. 120 Ohm

Circuit protection: 10 VDC up to 30 VDC, HTL only

Resolution:
Max. pulses per revolution 1 PPR up to 128 PPR, 256 PPR, 512 PPR, 1024 PPR



Electrical Data

Power supply/Current consumption:
5 VDC up to 30 VDC: typ. 40 mA

Output circuit:
HTL (TTL at 5 VDC supply)
HTL, inv. (TTL inv. at 5 VDC supply)

Pulse frequency: ≤ 1024 ppr: max. 200 kHz

Channels: ABN and inverted signals

Load: max. 40 mA / channel

Circuit protection: no
