• Compact design
• Simple, quick and flexible installation
• High operational reliability
• Long service life

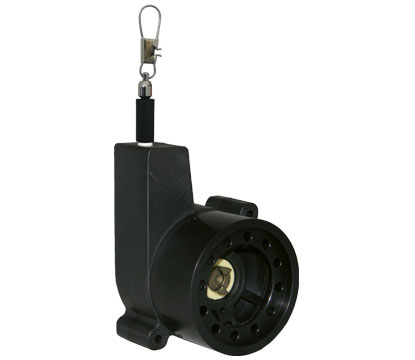

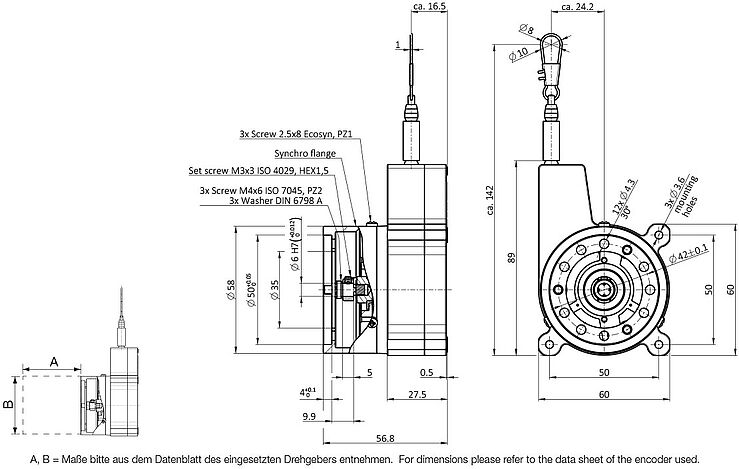

The draw-wire system SZG50 can be used even where space is tight, thanks to its compact dimensions. The SZG50 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions.

This encoders are suitable for mounting:
(All encoders only with option AIX = shaft: Ø 6 mmm, shaft length: 10 mm)
Incremental encoders:
WDGI-58A-06-AIX (optical)
WDGI-58A-06-AIX (magnetic)
WDGP-58A-06-AIX
WDGN-58A06-AIX
or
Absolute encoders WDGA-58A-06-AIX

The encoder is already mounted.

Order No. for SZG50 without Encoder: SZG500240UZVK
STEP: SZG500240UZVK

Example order No. for SZG50 with Encoder: s. datasheet

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

Accessories: Deflection pulley

0 - 2400 mm

Calculation of Resolution:
Incremental e.g. 2500 pulses and 2.4 m wire length

Calculation of pulses/mm:
Pulses/Mean distance per rotation = Pulses/mm
e.g. 2500 / 150.75 = approx. 16.58 Pulses/mm

Absolute e.g. 12 bit single-turn and 2.4 m wire length

Calculation of steps/mm: (x = Single-turn resolution)
2^X/Mean distance per rotation = Steps/mm
e.g. 2¹² / 150.75 = 4096 / 150.75 = approx. 27.17 Steps/mm
